ST High Performance, High Integration, High Cost-Performance MCU — STM32H5 Series
The STM32H5 series is based on the 32-bit Arm® Cortex®-M33 core running as high as 250 MHz. It offers the best combination of performance and security, in an affordable way.
Offering up to 2 Mbytes of flash memory in dual-bank memory, up to 640 Kbytes of SRAM and high peripheral integration, the STM32H5 series of microcontrollers offers developers from design freedom.
The STM32H5 portfolio offers large package options from 25- to 225-pin. It supports up to 125°C ambient temperature, making it suitable for harsh environments.
The STM32H5 provides a scalable security offer to address every need, including the security requirements of IoT devices. Developers can choose between several offers ranging from: the most essential security services to fully certified building blocks maintained by ST over the product lifecycle. This MCU series gives you more flexibility in your design choices.
Product Portfolio
The STM32H5 series expands the STM32 product portfolio with more performance, more memory and peripherals, and a scalable security offer at an affordable cost.

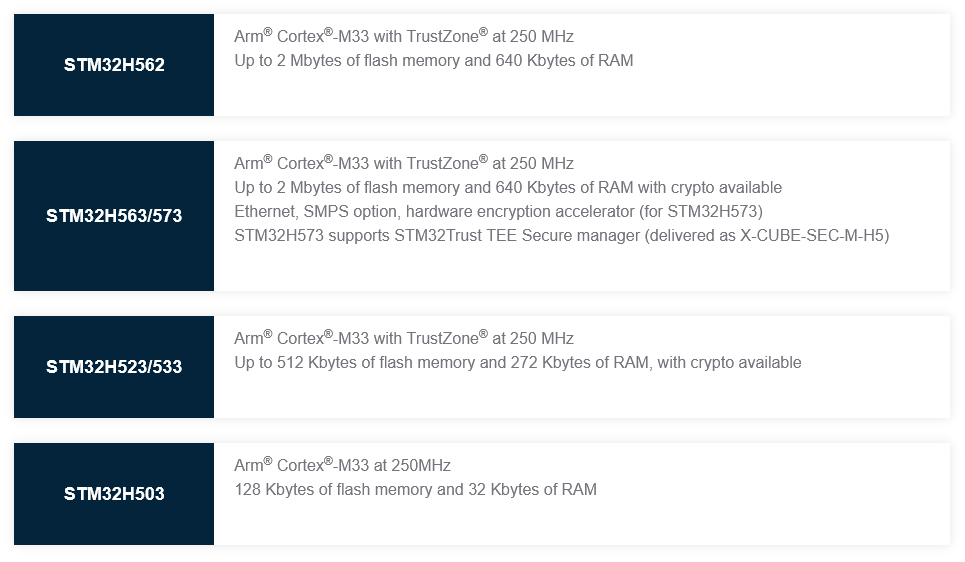

Product Types
Benefits
High performance:industry-first 32-bit MCU with Arm Cortex-M33 core running as high as 250 MHz
Scalable security:
- From the most essential security services to fully certified building blocks, which are maintained by ST
- First STM32 MCU with a trusted execution environment (TEE), called the Secure Manager. This contributes to simplifying the customer journey and provides seamless cloud and server support.
Affordable:The MCUs are based on ST’s optimized 40 nm process technology and large choice of memory, peripherals, and package options.

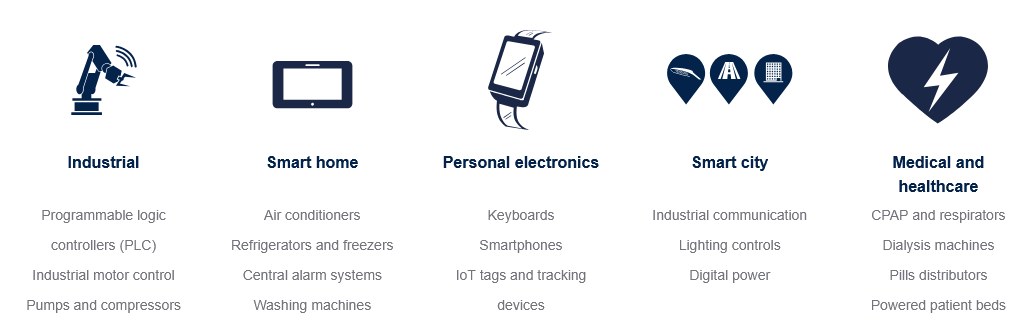

Applications
Main Components
| Product lines |
Dual
bank
flash
(KB) |
RAM
(KB) |
Memory |
USB |
12-bit
ADC |
FDCAN |
Ethernet |
Power
Supply |
AES/SAES
PKA
OTFDEC
HUK
ST-iROT |
Datasheet |
| STM32H562 |
1024 to 2048 |
640 |
SDMMC
FMC
OctoSPI |
FS/UCPD |
2 |
1 |
|
LDO |
|
 |
| STM32H563 |
1024 to 2048 |
640 |
2x SDMMC
FMC
OctoSPI |
FS/UCPD |
2 |
2 |
Yes |
SMPS
LDO |
|
|
| STM32H573 |
2048 |
640 |
2x SDMMC
FMC
OctoSPI |
FS/UCPD |
2 |
2 |
Yes |
SMPS
LDO |
Yes |
|
| STM32H523 |
256 to 512 |
272 |
SDMMC
FMC
OctoSPI |
FS/UCPD |
2 |
2 |
|
LDO |
|
|
| STM32H533 |
512 |
272 |
SDMMC
FMC
OctoSPI |
FS/UCPD |
2 |
2 |
|
LDO |
Yes |
|
| STM32H503 |
128 |
32 |
|
FS |
1 |
1 |
|
LDO |
|
|
| ☆ |
